DXHD56P Zoom Digital Microscope 24x - 313x

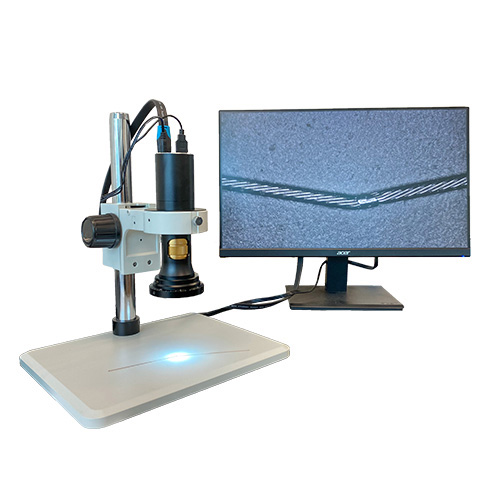

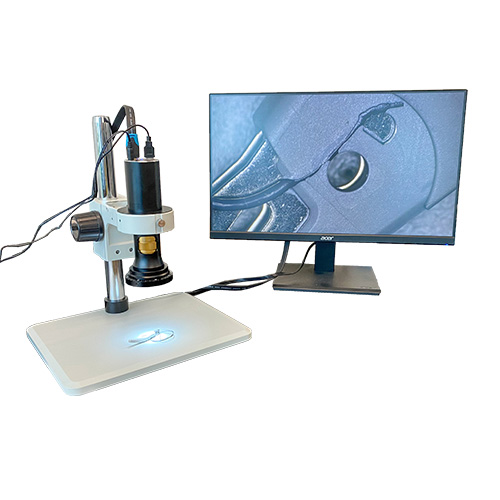

The Fein Optic DXHD56P zoom digital microscope is a zoom lens system with 0.7x – 5.6x magnification. The on-screen magnification range of 24x- 313x is achieved when pairing the 1x or 0.75x auxiliary lens. Choose from a 2mp HD or 8mp UHD 4K built in camera to capture high quality images on choice of 22″ HD or 27″ UHD 4K monitor. The system includes a post stand with large working surface, polarizing LED ring light, software for image capture and on screen measurement.
Zoom Lens | 0.7x – 5.6x, NA = 0.09, with detents for measurements. |
Auxiliary Lens | 1x, WD = 80mm |
0.75x, WD = 105mm | |
On Screen Magnification | 1x Auxiliary Lens: 22″ Monitor = 32x – 255x, 27″ Monitor = 39x – 313x |
0.75x Auxiliary Lens: 22″ Monitor = 24x – 191x, 27″ Monitor = 29x – 235x | |
Maximum Resolution | 5µm |
Stand | Post stand with large working area of 320mm W x 260mm D. Post is 355mm H. |
Focusing | Coarse focusing holder. |
Illumination | LED ring light with integrated polarizer and analyzer. |
Camera | Built-in 2mp HD camera 1080p, live resolution 1920 x 1080 pixels. Live image 1080p 60 fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. |
Built-in 8mp UHD 4K camera 2160p. Live image 3840 x 2160 30fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. | |
Monitor | 22″ HD Monitor |
27″ UHD 4K Monitor | |
Warranty | 2 Years |
Auxiliary Lens | Working Distance | 22″ Monitor On Screen Magnification | 27″ Monitor On Screen Magnification |
1x | 80mm | 32x – 255x | 39x – 313x |
0.75x | 105mm | 24x – 191x | 29x – 235x |
