DX56P Zoom Digital Microscope 15x - 154x

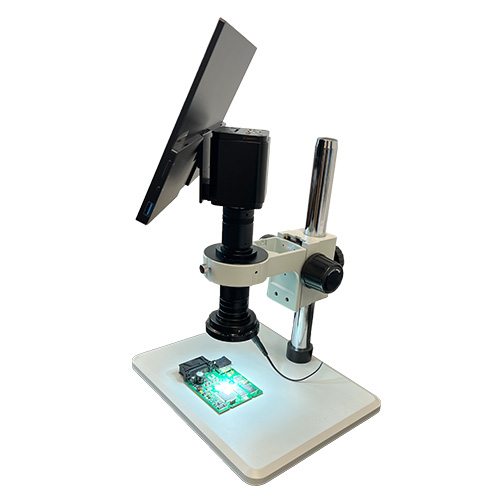

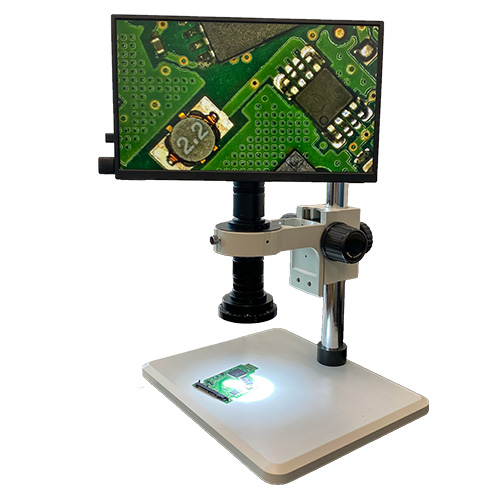

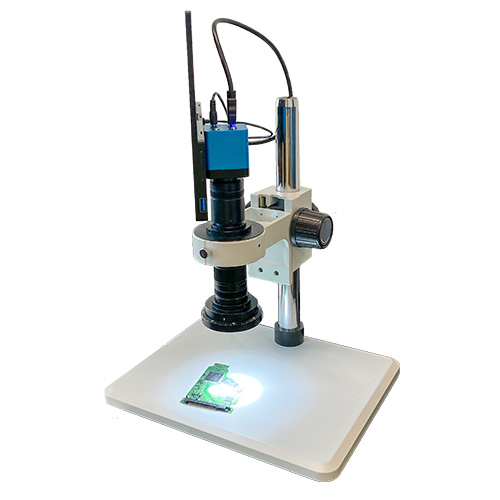

The Fein Optic DX56P zoom digital microscope is a zoom lens system with 0.7x – 5.6x magnification. The on-screen magnification range of 15x- 154x is achieved when pairing the 1x or 0.75x auxiliary lens. Choose from a 2mp HD or 8mp UHD 4K camera to capture high quality images on a 13″ monitor. The system includes a post stand with large working surface, polarizing LED ring light, and provides maximum resolution down to 5um.
| Zoom Lens | 0.7x – 5.6x, NA = 0.09, with detents for measurements. |
| Auxiliary Lens | 1x, WD = 80mm |
| 0.75x, WD = 105mm | |
| On Screen Magnification | 1x Auxiliary Lens = 19x – 154x |
| 0.75x Auxiliary Lens = 15x – 116x | |
| Maximum Resolution | 5µm |
| Stand | Post stand with large working area of 320mm W x 260mm D. Post is 355mm H. |
| Focusing | Coarse focusing holder. |
| Illumination | LED ring light with integrated polarizer and analyzer. |
| Camera | 2mp HD camera 1080p, live resolution 1920 x 1080 pixels. 2mp image capture to USB flash drive. Live image 1080p 60 fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. |
| 8mp UHD 4K camera 2160p HDMI + USB3 + SD Card / USB Flash Drive. Live image 3840 x 2160 30fps. 8mp image capture to SD card or USB flash drive. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. Software included for image capture and measurement on a PC. | |
| Monitor | 13″ HD Monitor |
| 13″ UHD Monitor | |
| Warranty | 2 Years |
| Auxiliary Lens | Working Distance | On Screen Magnification |
| 1x | 80mm | 19x – 154x |
| 0.75x | 105mm | 15x – 116x |
