DXHD56P Zoom Digital Boom Microscope 24x - 313x

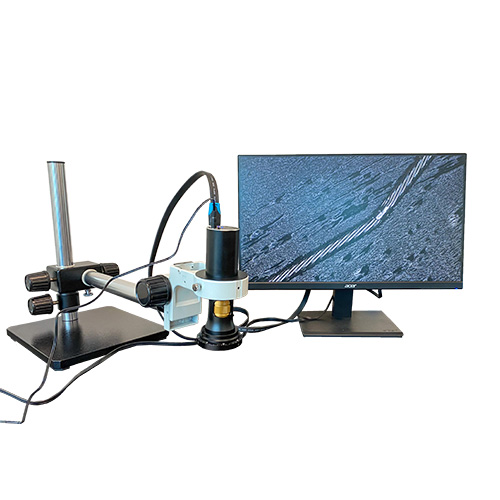

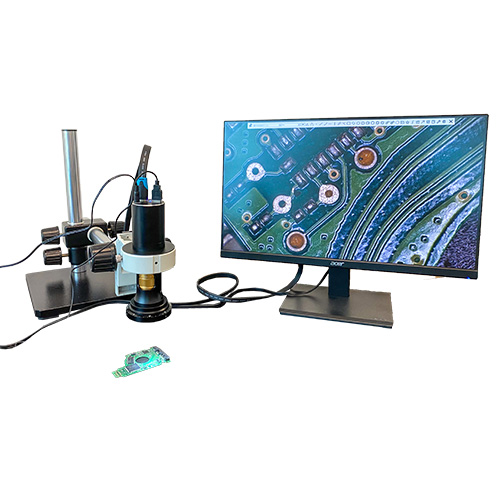

The Fein Optic DXHD56P zoom digital boom microscope is a zoom lens system with 0.7x – 5.6x magnification. The on-screen magnification range of 24x- 313x is achieved when pairing the 1x or 0.75x auxiliary lens and choice of 22″ HD or 27″ UHD 4K monitor. The built in 2mp HD or 8mp 4K HD camera provides images directly to a monitor via HDMI connection. The system includes a boom stand with tilting pin mount and coarse focusing holder, polarizing LED ring light, and camera software for on-screen image capture and measurement.
| Zoom Lens | 0.7x – 5.6x, NA = 0.09, with detents for measurements. |
| Auxiliary Lens | 1x, WD = 80mm |
| 0.75x, WD = 105mm | |
| On Screen Magnification | 1x Auxiliary Lens: 22″ Monitor = 32x – 255x, 27″ Monitor = 39x – 313x |
| 0.75x Auxiliary Lens: 22″ Monitor = 24x – 191x, 27″ Monitor = 29x – 235x | |
| Maximum Resolution | 5µm |
| Stand | Boom stand with tilting pin mount for focus holder. Base 259mm W x 290mm D. Maximum distance from the vertical post to the end of the base is 227mm (8.9″). Vertical post is 383mm (15.1″) tall. Horizontal post is 540mm long. |
| Focusing | Coarse focusing holder. |
| Illumination | LED ring light with integrated polarizer and analyzer. |
| Camera | Built-in 2mp HD camera 1080p, live resolution 1920 x 1080 pixels. Live image 1080p 60 fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. |
| Built-in 8mp UHD 4K camera 2160p. Live image 3840 x 2160 30fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. | |
| Monitor | 22″ HD Monitor |
| 27″ UHD 4K Monitor | |
| Warranty | 2 Years |
| Auxiliary Lens | Working Distance | 22″ Monitor On Screen Magnification | 27″ Monitor On Screen Magnification |
| 1x | 80mm | 32x – 255x | 39x – 313x |
| 0.75x | 105mm | 24x – 191x | 29x – 235x |
