DXHD56P Zoom Digital Articulated Arm Microscope 24x - 313x

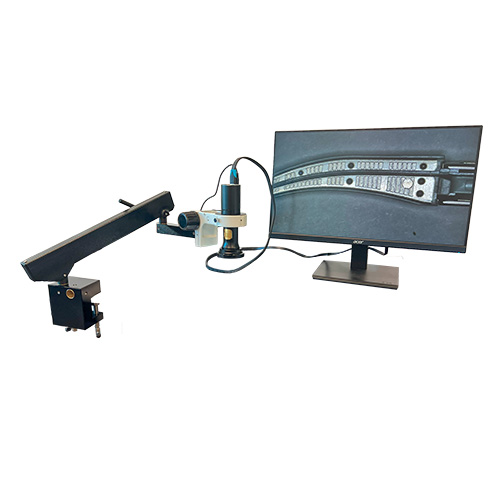

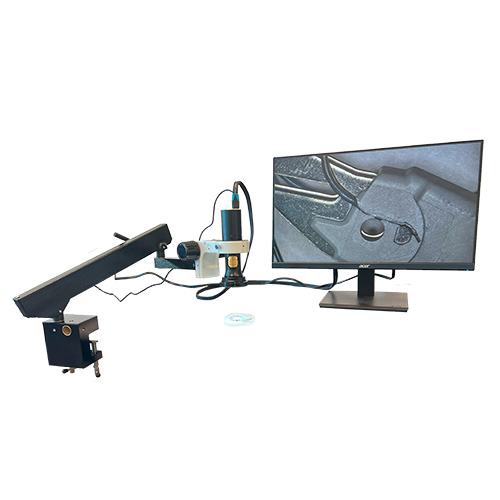

The Fein Optic DXHD56P zoom digital articulated arm microscope is a zoom lens system with 0.7x – 5.6x magnification. The on-screen magnification range of 24x- 313x is achieved when pairing the 1x or 0.75x auxiliary lens and choice of 22″ HD or 27″ UHD 4K monitor. Choose from a 2mp HD or 8mp UHD 4K built in camera to capture high quality images. The system includes a small articulated arm stand with table clamp, polarizing LED ring light, and camera software for image capture and on-screen measurement.
| Zoom Lens | 0.7x – 5.6x, NA = 0.09, with detents for measurements. |
| Auxiliary Lens | 1x, WD = 80mm |
| 0.75x, WD = 105mm | |
| On Screen Magnification | 1x Auxiliary Lens: 22″ Monitor = 32x – 255x, 27″ Monitor = 39x – 313x |
| 0.75x Auxiliary Lens: 22″ Monitor = 24x – 191x, 27″ Monitor = 29x – 235x | |
| Maximum Resolution | 5µm |
| Stand | Clamping articulated arm stand with tilting pin mount for focus holder. Clamp = 104mm x 77mm x 136mm. Articulated Arm = 104mm x 450mm x 160mm. |
| Focusing | Coarse focusing holder. |
| Illumination | LED ring light with integrated polarizer and analyzer. |
| Camera | Built-in 2mp HD camera 1080p, live resolution 1920 x 1080 pixels. Live image 1080p 60 fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. |
| Built-in 8mp UHD 4K camera 2160p. Live image 3840 x 2160 30fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. | |
| Monitor | 22″ HD Monitor |
| 27″ UHD 4K Monitor | |
| Warranty | 2 Years |
| Auxiliary Lens | Working Distance | 22″ Monitor On Screen Magnification | 27″ Monitor On Screen Magnification |
| 1x | 80mm | 32x – 255x | 39x – 313x |
| 0.75x | 105mm | 24x – 191x | 29x – 235x |
