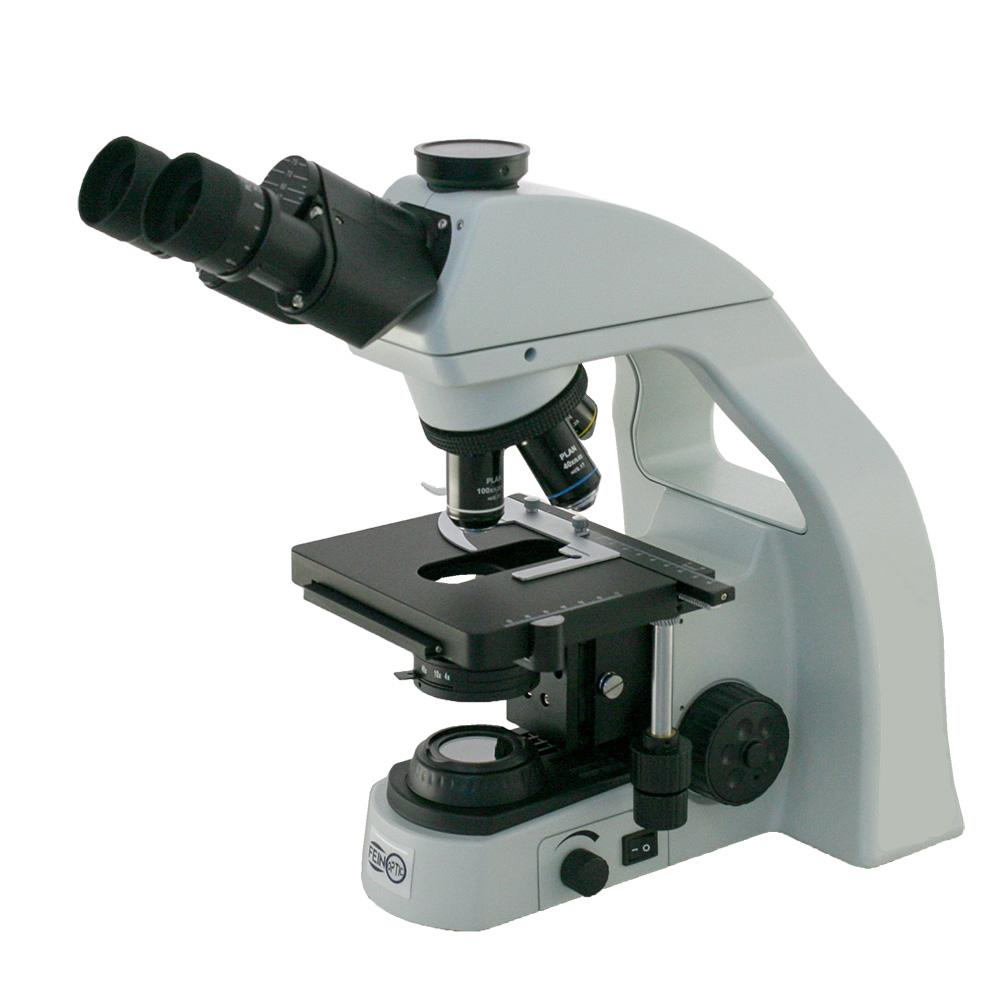

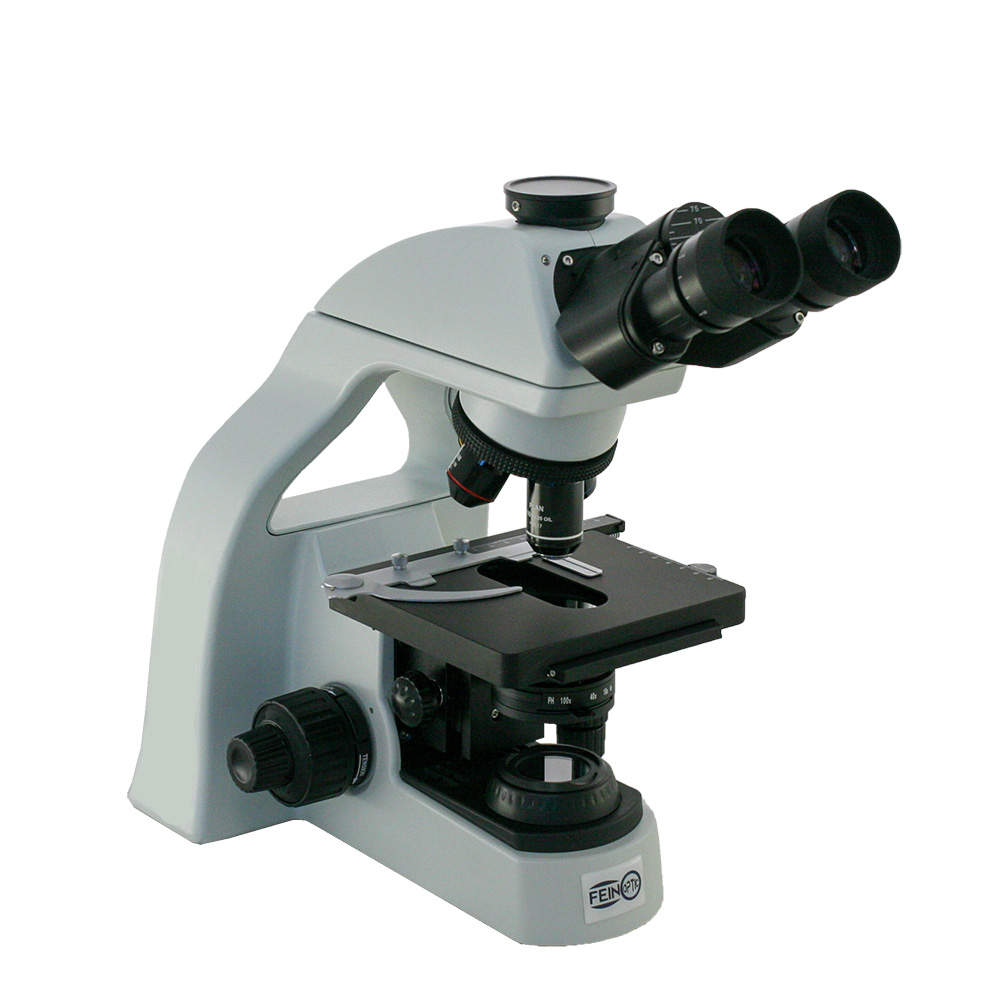

RB20 Laboratory Microscope

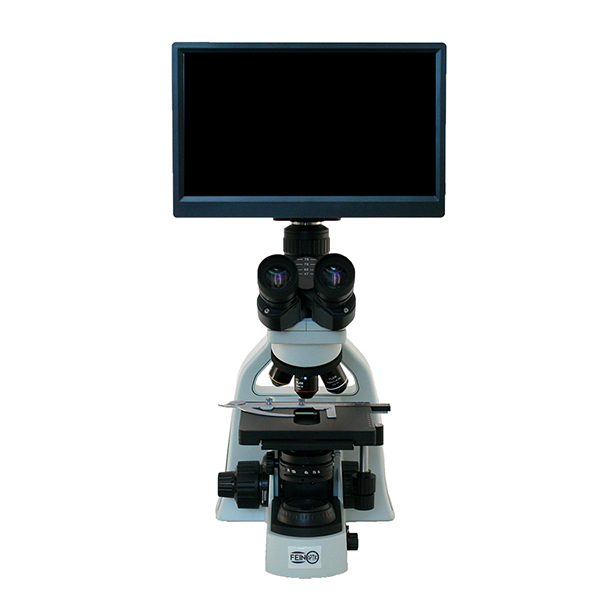

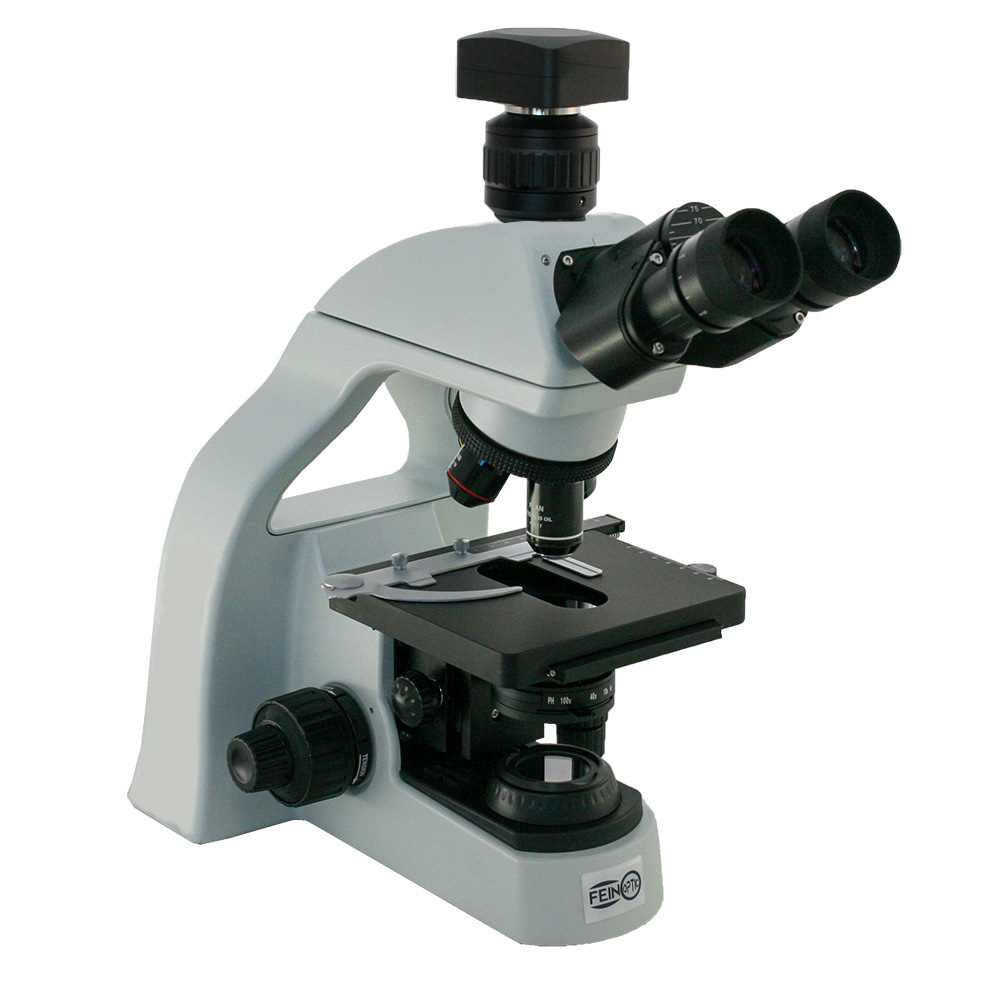

The Fein Optic RB20 biological lab microscope was designed for base lab work and basic phase contrast microscopy. 3W LED illumination provides bright and steady light with fixed Koehler illumination. Simple phase contrast is available with a phase slider, phase centering telescope and 40x PH objective lens. Digital cameras can be added for image capture and viewing live images.
| Optical System | Infinity Color Corrected Achromatic Optical System |
| Viewing Head | 30° Inclined Siedentopf trinocular viewing head. Interpupillary distance adjustment from 47mm – 75mm. |
| Eyepieces | PL-WF 10x widefield, plan focusing eyepieces, FN20. Accepts 20mm diameter reticle. |
| Objectives | Plan Achromat 4x, NA 0.10. |
| Plan Achromat 10x, NA 0.25. | |
| Plan Achromat 40x, NA 0.65, spring loaded. | |
| Plan Achromat 100x oil, NA 1.25, spring loaded. | |
| Nosepiece | Revolving quadruple nosepiece. |
| Focus Adjustment | Coaxial coarse and fine focusing adjustment with rack and pinion mechanism. Fine focusing scale 0.002mm. |

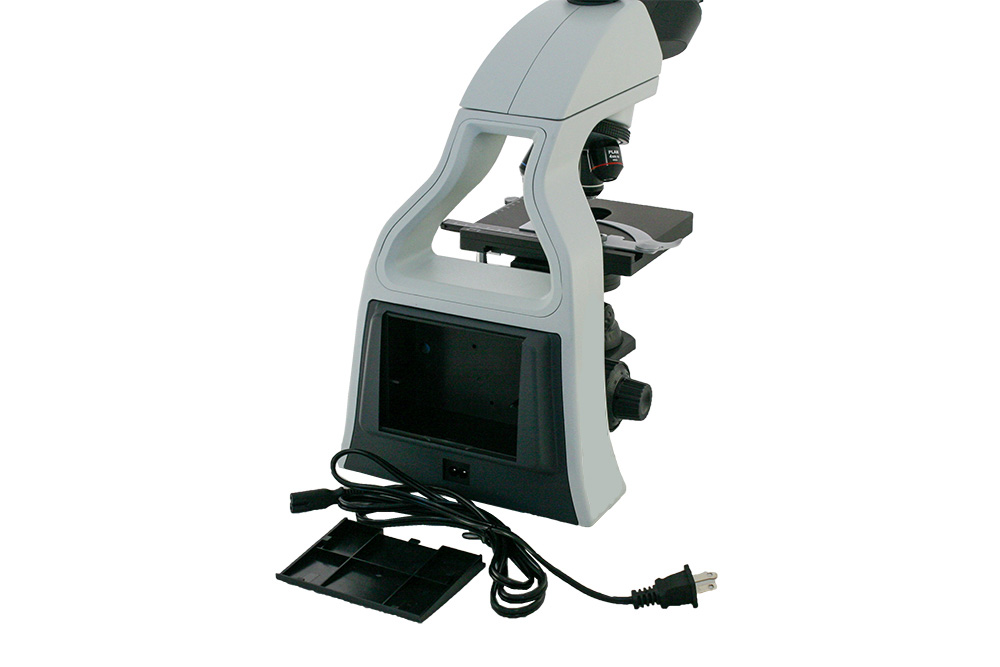

| Body | Automatic voltage sensing power supply 110v~240v, removable power cord. Microscope frame has storage compartment for power cord. |

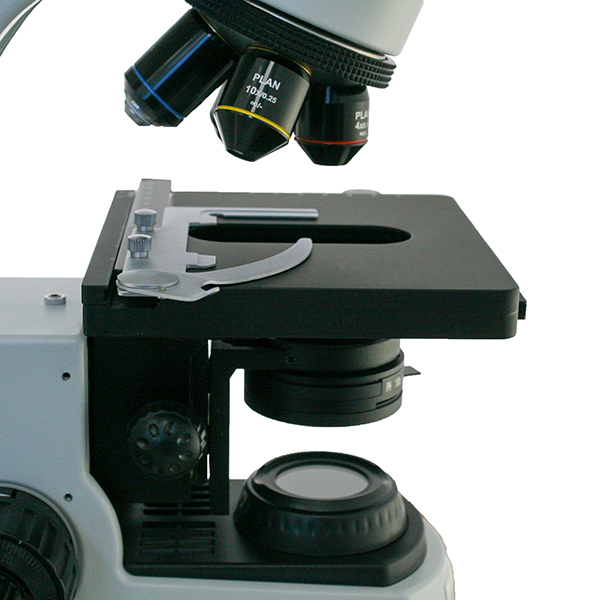

| Stage | 150mm x 140mm mechanical stage with low-position controls. Movement range of 76mm x 50mm, precision 0.1mm. |
| Illumination | 3W LED illuminator with rheostat control, 100V~240V. |
| Condenser | NA 1.25 fixed Koehler illuminator condenser with slot for phase contrast or darkfield slider. |
| Simple Phase Contrast | Phase centering telescope, plan phase contrast PH40x, 0.65x objective, phase slider, and phase centering screws. |
| Filters | Microscope accpets 34mm diameter filters. |
| C-Mount Adapters | Focusing 0.35x, focusing 0.5x, focusing 0.65x, 1x. |
| Reticles | Variety of 20mm Ø reticles available including: grid, ruler, cross-line, etc. Metric or inches. |
