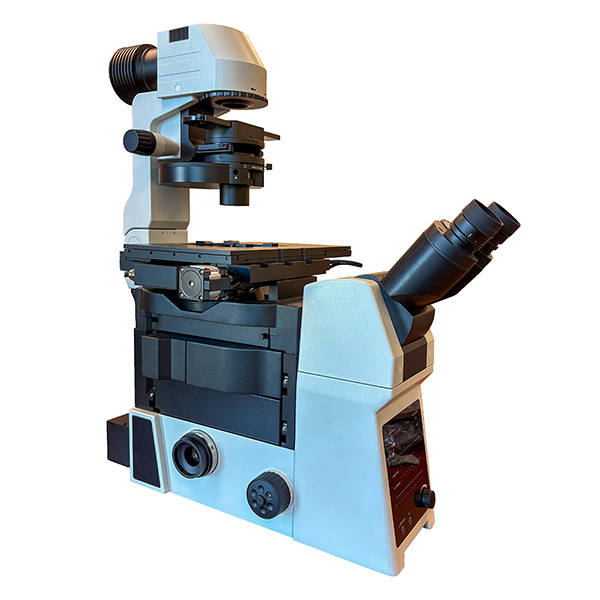

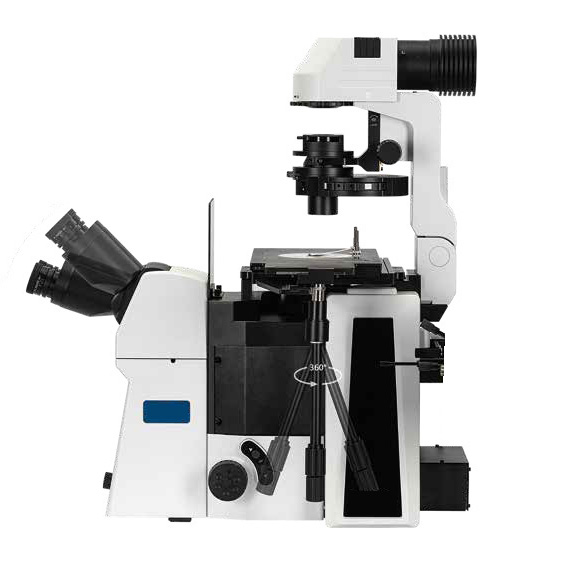

iRB70 Inverted Biological Motorized Microscope
The Fein Optic iRB70 inverted biological motorized microscope was designed for advanced microscopy using brightfield, phase contrast, fluorescence, or DIC. Ergonomic features ensure ease of use. A variety of LWD objectives are available in Plan Semi Apo, Plan Semi Apo Phase Contrast, Plan Apo, and Plan Super-Apo. Microscope can be configured for laser-free spinning disk confocal microscope.
| Optical System | Infinity Color Corrected Optical System |
| Viewing Head | 20°~45° tilting head, inverted image. Interpupillary distance adjustable 50~76mm. Beam splitter ratio: 100:0, 50:50, 0:100. |
| Eyepieces | High eye point widefield plan eyepieces, FN22 with adjustable diopter. Reticle retaining ring for 26mm diameter reticle. |
| Objectives | LWD Plan Semi APO Objectives: 2x, 4x,10x, 20x, 40x, 60x,100x |
| LWD Plan Semi APO Phase Contrast Objectives: 4x, 10x, 20x, 40x, 60x | |
| Infinity Corrected Plan APO Objectives: 2x, 4x, 10x, 20x, 40x, 60x, 60x oil, 100x oil | |
| Infinity Corrected Plan Super APO Objectives: 10x, 20x, 40x, 60x oil | |
| Nosepiece | Motorized, revolving sextuple nosepiece with DIC slot. |
| Focus Adjustment | Low position coarse and fine coaxial focus mechanism with 10.5mm range |
| Body | Power supply 100~240V wide voltage system. |
| Stage | Prior motorized OptiScan mechanical stage with XY travel 115mm x 77mm. Includes OptiScan controller, XY & Z joysticks, focus drive, and specimen holder. |

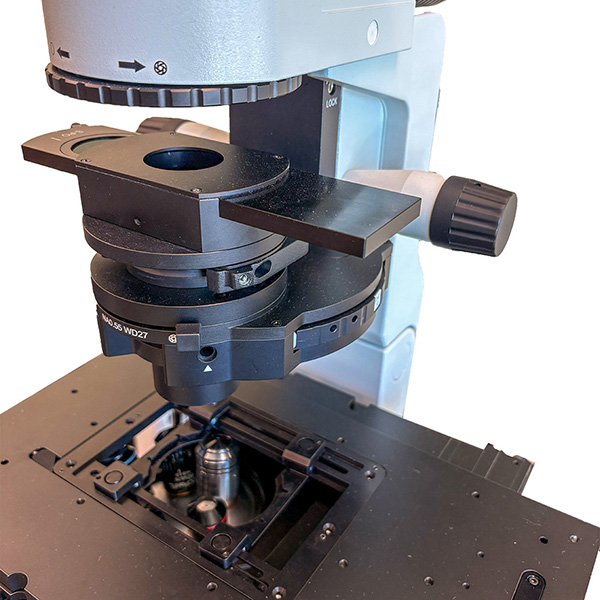

| Condenser | Manual septuple extra long working distance condenser, WD = 27mm, NA 0.55, with iris diaphragm and slot for phase slider. |
| Phase Slider | 3-Position Phase Slider |
| Illumination | LED Koehler tilting transmission light column with tiltable bracket, tilting range 65mm. Four filter holders are built into illuminator. Fluorescent illuminator can be added. |
| C-Mount Adapters | 0.5x, 0.65x, 1x c-mount adapters. |
